The Forgotten Structure: Why Overhead Water Tanks Fail in Earthquakes

Understanding the seismic vulnerabilities of elevated water reservoirs and the engineering lessons every structural engineer must know.

Introduction

If you live in a city, there's probably an overhead water reservoir or elevated water tank within a kilometre of you right now. Maybe a towering RCC structure on slender columns or a single shaft staging system.

Now ask yourself: When was the last time anyone might have checked this tank for structural safety or if it could withstand a major earthquake?

Around the world, billions are invested in making buildings more safe and earthquake-resistant. Yet one of the most crucial elements of urban infrastructure often escapes attention: the elevated water reservoir that provides water for domestic consumption, supports emergency response, and supplies water for firefighting when disaster strikes.

This blog highlights the seismic risks associated with overhead water tanks and the lessons engineers must learn.

The 90-Second Story You Haven't Heard

Bhuj, 26 January 2001. 8:46 AM

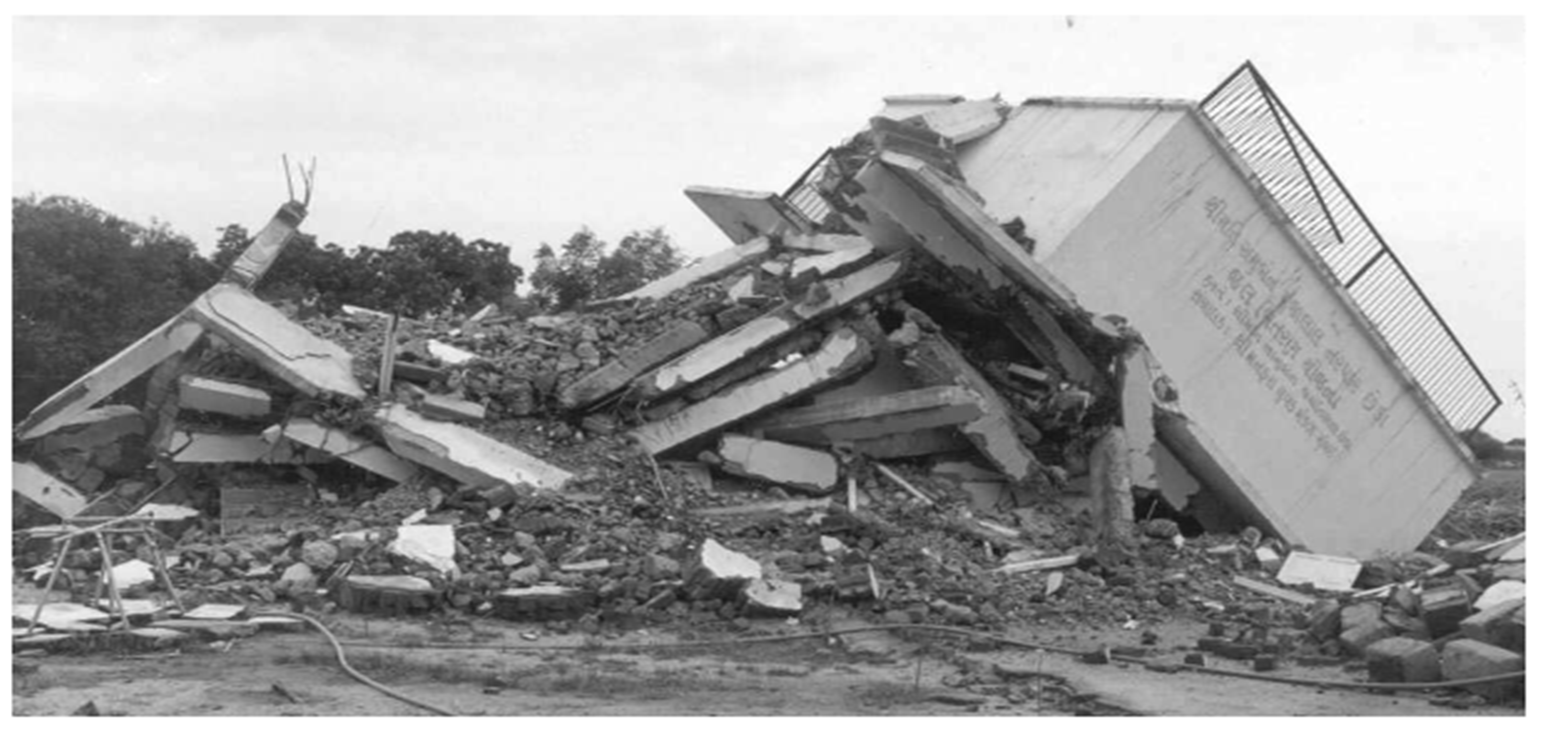

A calm morning followed by a sudden violent ground shake. In just 90 seconds, this destructive earthquake claimed more than 20,000 lives, buildings pancaked and entire communities were left devastated. But amid destruction, another critical failure unfolded: At Anjar, a 200 cubic metre elevated water tank — a concrete dome on a hollow shaft — simply collapsed. The tank crashed down onto a street. Fortunately, no one was standing beneath at that moment.

Two kilometres away, an older tank with a robust RC frame-type staging, ductile joints, and proper confinement swayed violently and cracked, but it did not fall. It kept its payload intact, supplying critical water to its sector and the surrounding area.

Why the Overhead Reservoir is Not "Just Another Structure"

Unlike conventional buildings, overhead water reservoirs (OHRs) are highly specialized structures whose seismic behaviour is influenced both by the structure itself and also by the water they contain.

In a typical office building, the mass is distributed across multiple floors. Now imagine an OHR: a million kilograms of water balancing on a skinny stalk of columns, or a single shaft.

During an earthquake, two things happen at once:

• The staging system sways under earthquake-induced lateral forces.
• The water sloshes — independently, violently, inside the tank.

Engineers call these impulsive (water moving with the wall) and convective (sloshing free surface) responses. But here's the scary part: most buildings don't have to worry about 200 tons of liquid changing their own behavior mid-shake.

The earthquake shakes the structure, and the water inside it, but the water fights back differently.

For sites over soft soils, there's another concern: kinematic interaction can either amplify forces (if the site period matches the tank period) or reduce them through radiation damping. This is why geotechnical investigation is an essential component of overhead water tank design.

And the staging? If it's too slender, too brittle, or detailed badly, the tank can become highly vulnerable during an earthquake.

The Four Ways an Overhead Reservoir Fails

Let us examine the most common failure modes observed during earthquakes.

1. The Staging Collapse – The Most Common Failure Mode

In many major earthquakes (Jabalpur 1997, Bhuj 2001, Chile 2010, Nepal 2015), the tank remained intact while the staging system failed

• Tall, slender columns with inadequate bracing → buckle.
• Beam-column joints with no confinement → shear failure.
• Shaft-type staging (a hollow concrete cylinder) → brittle crack at the base or joints between successive lifts, then total collapse.

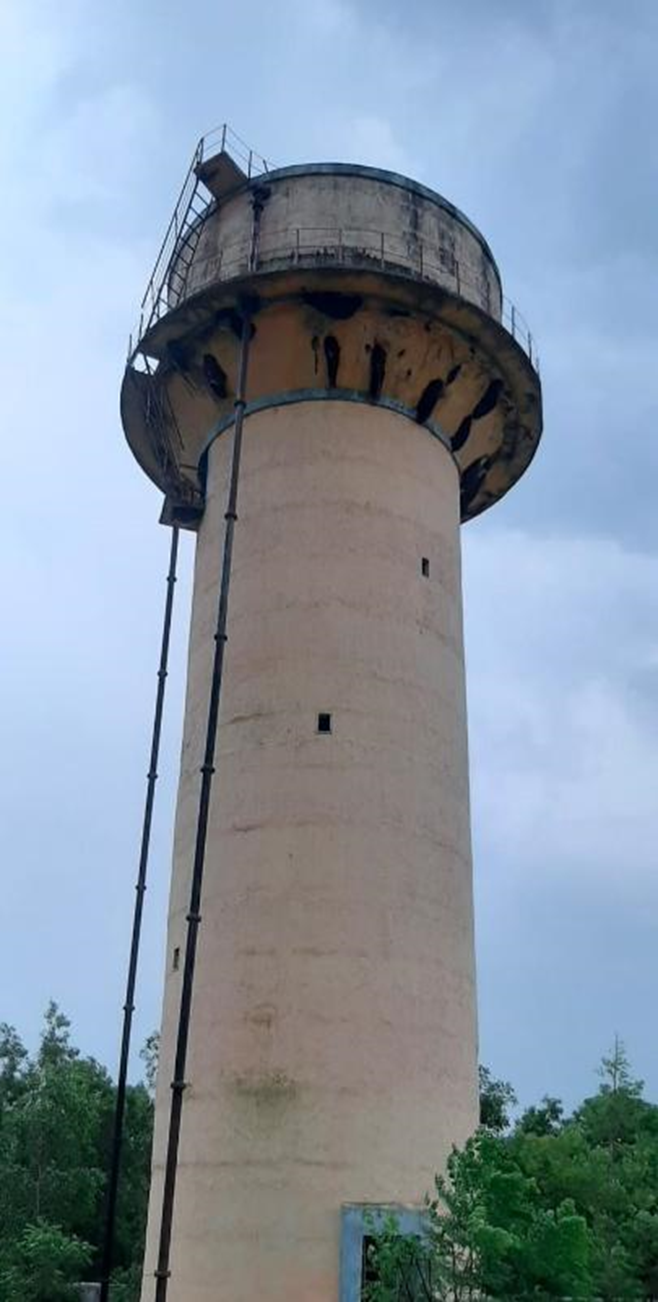

Look at an OHR near your office. Can you see the steel bracing? Is it welded steel or bolted? Bolted joints are the first to go in cyclic loading.

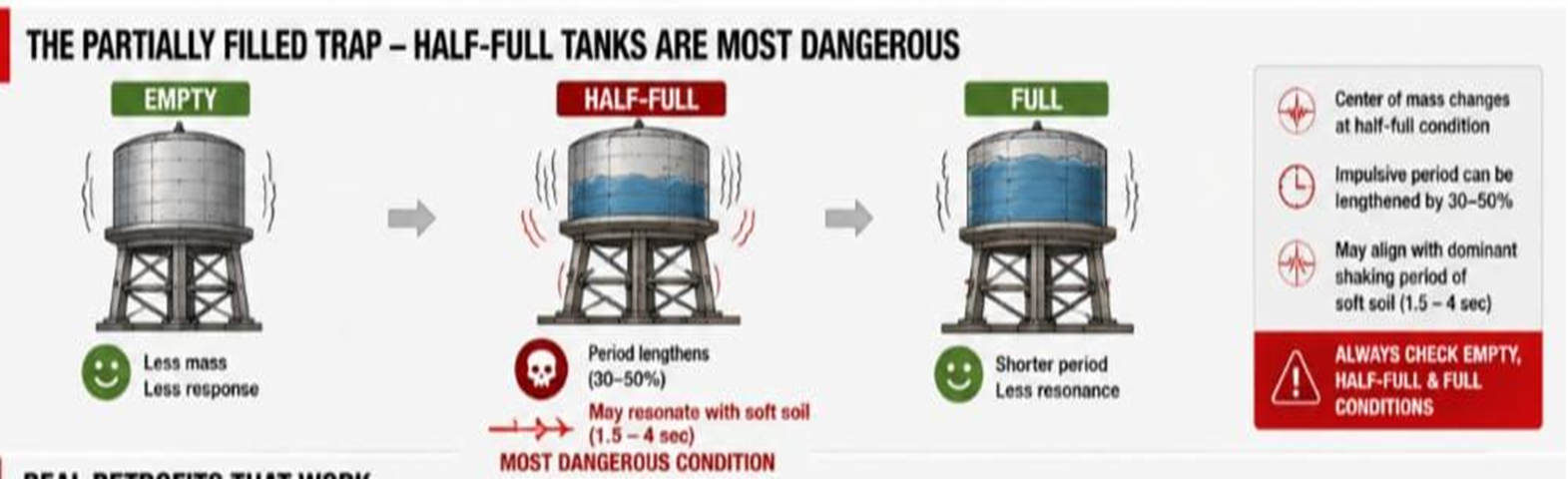

2. The Partially Filled Surprise – The Engineer's Trap

Most people assume a full tank is the worst case. However, partially filled tanks can be more dangerous. Because:

• The centre of mass changes.
• The impulsive period can be lengthened by 30 to 50%.
• That new period might align with the dominant shaking period of soft soil (typically 1.5 to 4 seconds).

Suddenly, resonance happens. The tank dances with the earthquake instead of fighting it.

3. Sloshing – The Silent Killer Inside

Convective waves aren't just a physics problem. In a real earthquake, water can slam into the roof of the tank with enough force to:

• Crack the concrete.
• Damage inlet/outlet pipes (especially Cast Iron/Ductile Iron).
• Spill thousands of litres down the side — the code may allow this "overtopping," but then you lose emergency water supply.

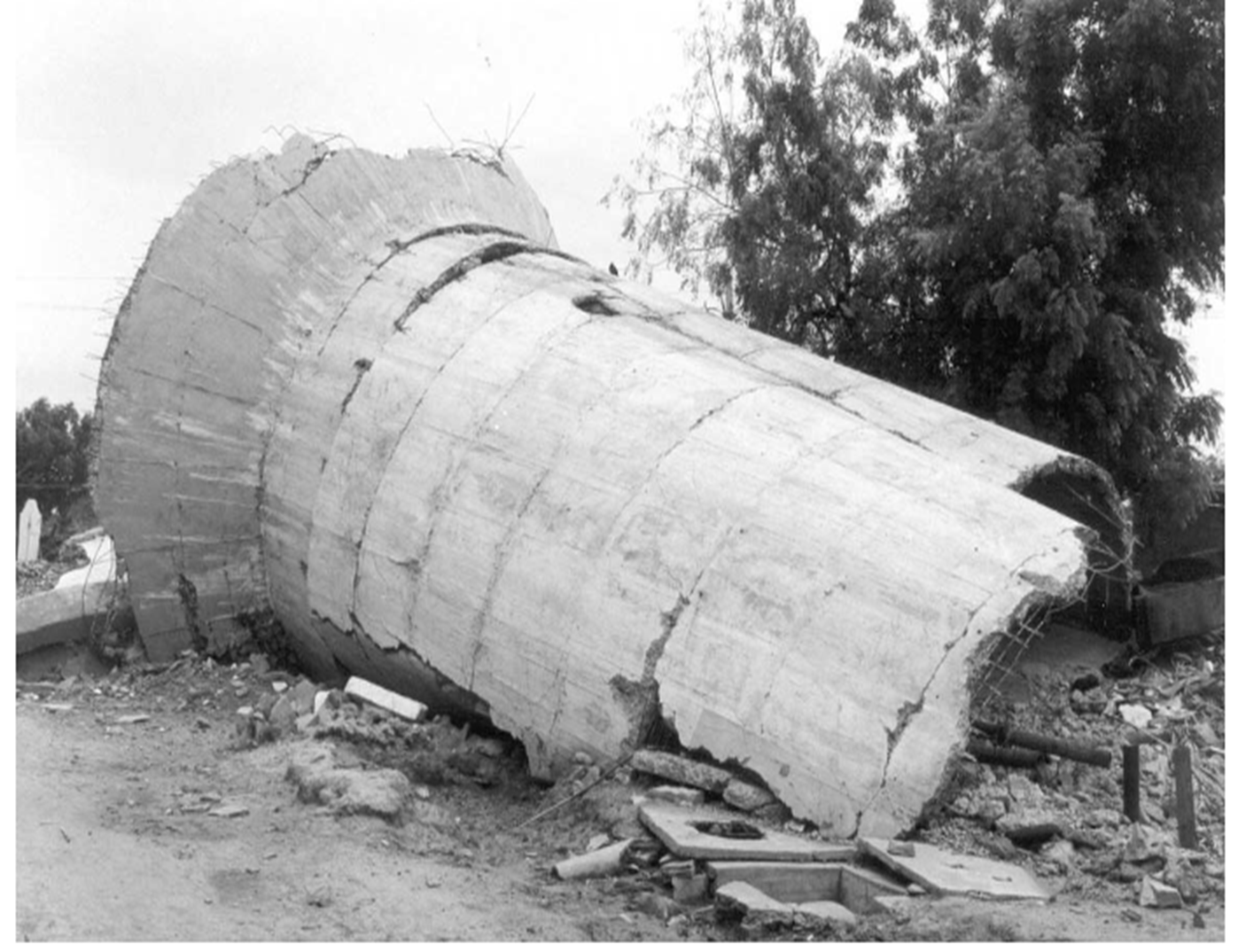

Collapse of a 265 kL elevated water tank at Chobari village, located approximately 20 km from the epicenter of the 2001 Bhuj earthquake, while the reservoir was about half-full at the time of the event.

4. Foundation Lies – Just Like Buildings

An OHR on soft, liquefiable soil? The entire structure can tilt or even undergo excessive settlement. We saw a similar phenomenon in Kandla during Bhuj. No amount of ductile staging or seismic detailing can save a structure if the ground beneath it loses its bearing capacity. Foundation performance is an important aspect of seismic resilience in elevated water tanks.

Ductile Detailing – The Final Line of Defence

Here's the brutal truth: a mathematically perfect seismic analysis model is worthless if the reinforcement isn't detailed properly.

Three principles matter:

• Confinement – tight stirrups, no lap splices in plastic hinge zones.
• Anchorage – hooks through beam-column joints, not just straight bars.
• Hierarchy – strong column / weak beam philosophy, so failure happens where you can see it coming.

The Most Dangerous Tank in Your City – Interactive Challenge

Take 60 seconds. Answer these three questions about any OHR you know:

• Was it designed as per the latest seismic code?
• Does it have ductile frame-type staging (instead of a single shaft)?
• Are flexible couplings provided on the inlet and outlet pipelines?

Real Retrofits That Work

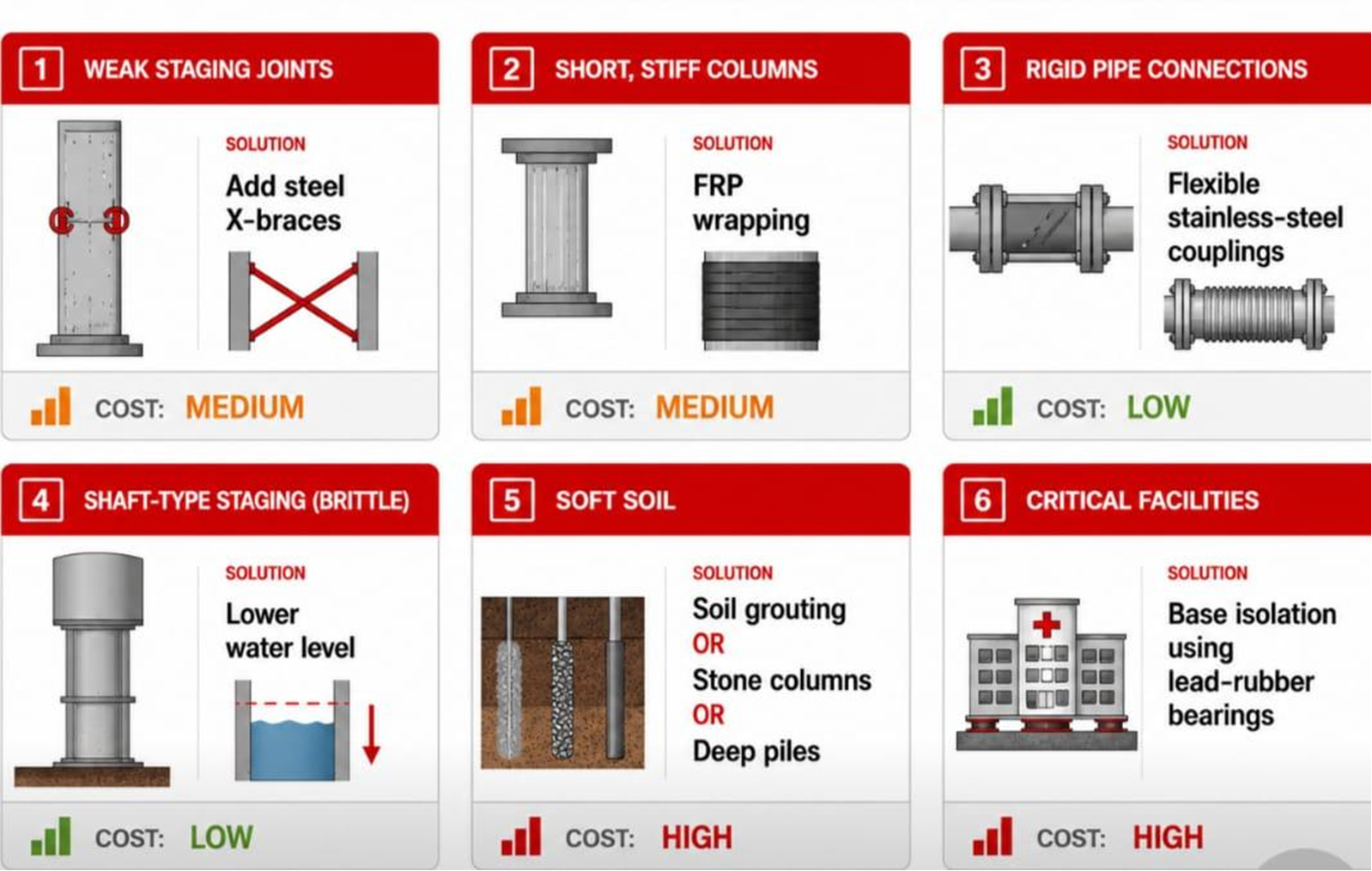

You don't need to demolish every old tank made up of steel or concrete. Here's what actually works to improve the earthquake resistance and serviceability of existing OHRs:

The One Story We Don't Tell Enough – What Worked

Let’s go back to Bhuj. The OHR mentioned earlier that sustained.

• Ductile frame-type staging (not brittle).
• Properly confined beam-column joints.
• No lap splices in the plastic hinge zone.
• A soil-foundation system strong enough to withstand the load.

The tank cracked. It leaked a little. But it remained functional. The reservoir continued to serve the community when it was needed most.

Let's Argue (Professionally) in the Comments

Three debates to chew on:

1. Budget Reality: Should we retrofit every OHR in Seismic Zone IV/V, or only those within 500 m of a hospital or fire station? Money isn't infinite.
2. Code vs. Practice: The failures observed during Bhuj (Silakhor) proved that force-based methods with an R-factor of 3 were insufficient. Should all existing OHRs be re-evaluated using performance-based methods?
3. Steel vs. Concrete Staging: Steel is ductile but rusts. Concrete is durable but brittle. Which is the ethical choice for a 50-year design life in a coastal city?

A city's resilience after an earthquake is judged not by the buildings that remain standing — but by whether the essential services continue to function.

The seismic performance of an overhead water reservoir (OHR) should be measured not only by its structural integrity, but by its ability to continue delivering water when it is needed most.

Don't wait for the next one to prove the point.

Assess well. Design smart. Build resilient infrastructure.

Drop your seismic OHR story below.
